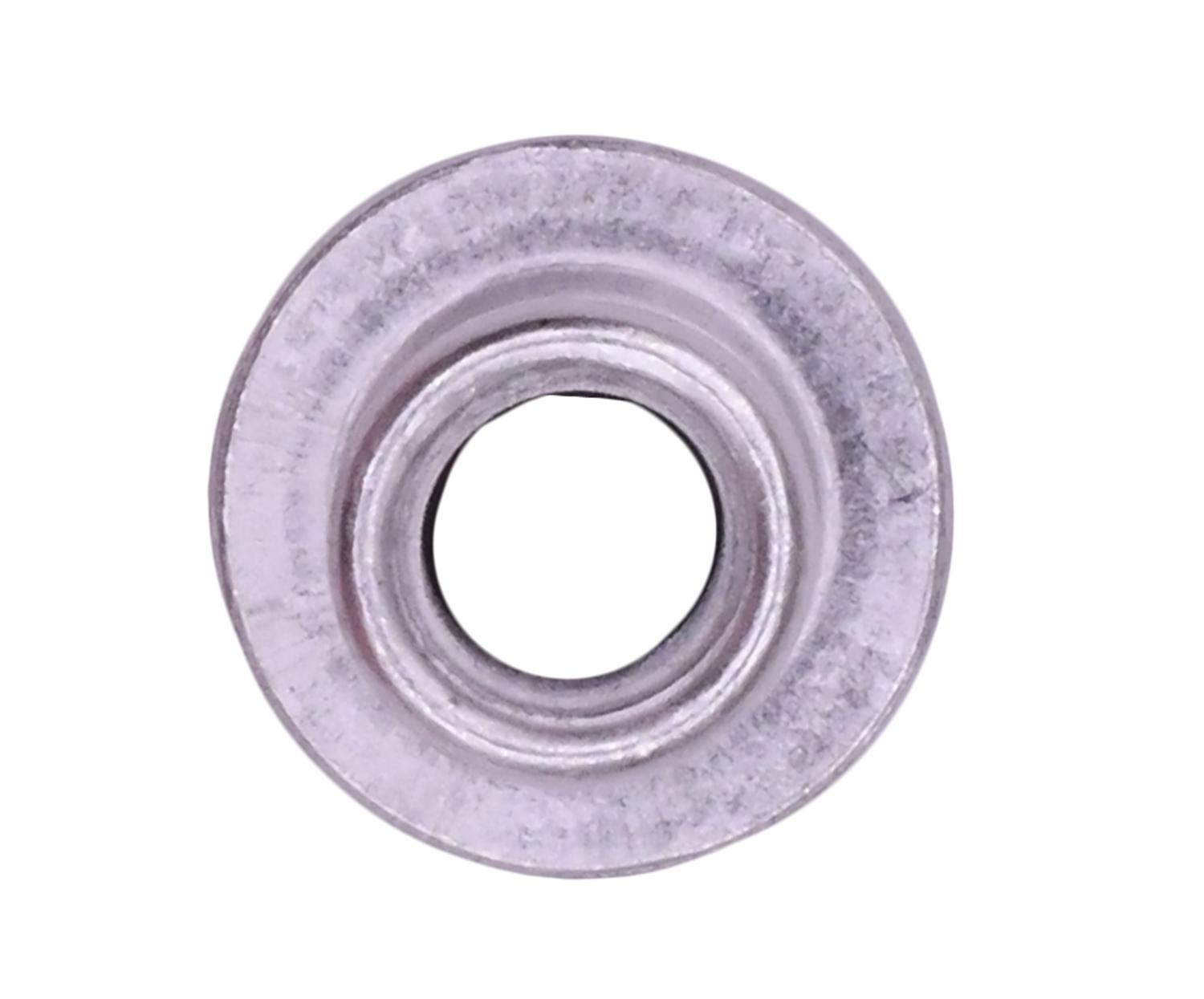

Auveco # 16177 Large Flange Thin Sheet Aluminum Nutsert 8-32 Threads. Qty 50.

Product Description
$34.20
Maximum quantity available reached.

Ships within 24 hours (M-F)

Product Information

Quantity: 50
Barrel Diameter: 0.217-0.221 in.
Barrel Height: 0.438-0.453 in.
Finish: None
Flange Diameter: 0.357 in. -0.372 in.
Flange Thickness: 0.032 in.
Grip Range: 0.010 in. - 0.075 in.
Hole Size: 0.221 in. - 0.226 in.
Material: Aluminum
Screw Size: #8-32
Made In: Taiwan

The Large Flange system provides captive threads in materials too thin to independently support threads, or where costly tapping operations are to be eliminated. The Large Flange fastener can be used as a rivet to join materials that will ultimately have a separate component attached.

To Set 8-32, 10-24 and 10-32 Large Flange Nutserts, use tool 11805 and conversion kits listed on page 163. Large Flange Nutserts, 1/4”-20, 5/16”-18 and 3/8”-16, require a pneumatic tool for installation. They cannot be set with 11805.


Sku: 16177
Vendor: Auveco
