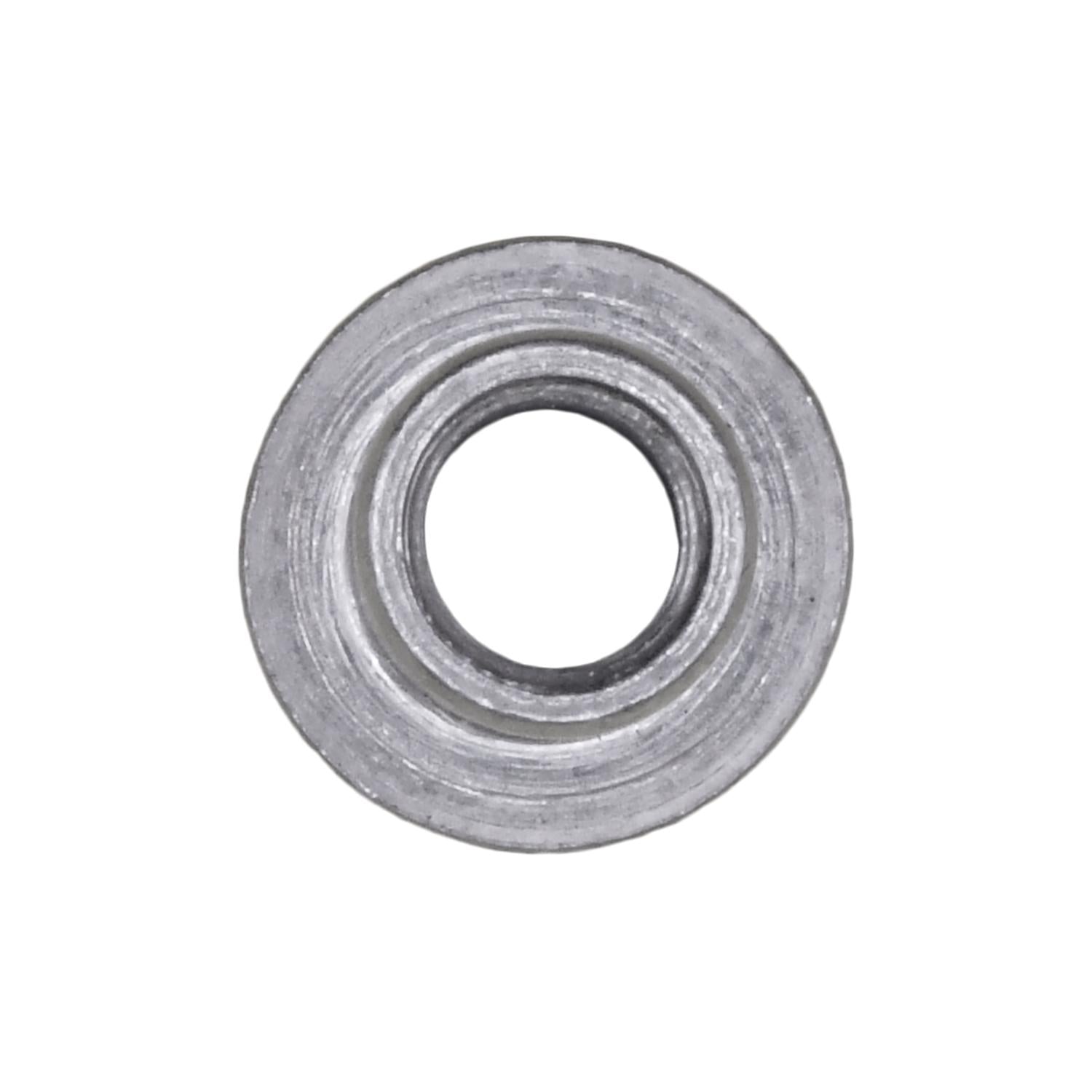

Auveco # 16180 Large Flange Thin Sheet Aluminum Nutsert 10-32 Threads. Qty 25.

Taxes and shipping calculated at checkout
In stock and ready for shipping

Product Information

Quantity: 25
Barrel Diameter: 0.246-0.250 in.
Barrel Height: 0.531-0.546"
Finish: None
Flange Diameter: 0.406 in. - 0.421 in.
Flange Thickness: 0.038 in.
Grip Range: 0.010 in. - 0.080 in.
Hole Size: 0.250 in. - 0.256 in.
Material: Aluminum
Screw Size: 10-32
Made In: Taiwan

The Large Flange system provides captive threads in materials too thin to independently support threads, or where costly tapping operations are to be eliminated. The Large Flange fastener can be used as a rivet to join materials that will ultimately have a separate component attached.

To Set 8-32, 10-24 and 10-32 Large Flange Nutserts, use tool 11805 and conversion kits listed on page 163. Large Flange Nutserts, 1/4”-20, 5/16”-18 and 3/8”-16, require a pneumatic tool for installation. They cannot be set with 11805.

SKU: 16180
