Auveco 16182 Large Flange Thin Sheet Aluminum Nutsert 1/4 -20 Threads Qty 25
Auveco 16182 Large Flange Thin Sheet Aluminum Nutsert 1/4 -20 Threads Qty 25

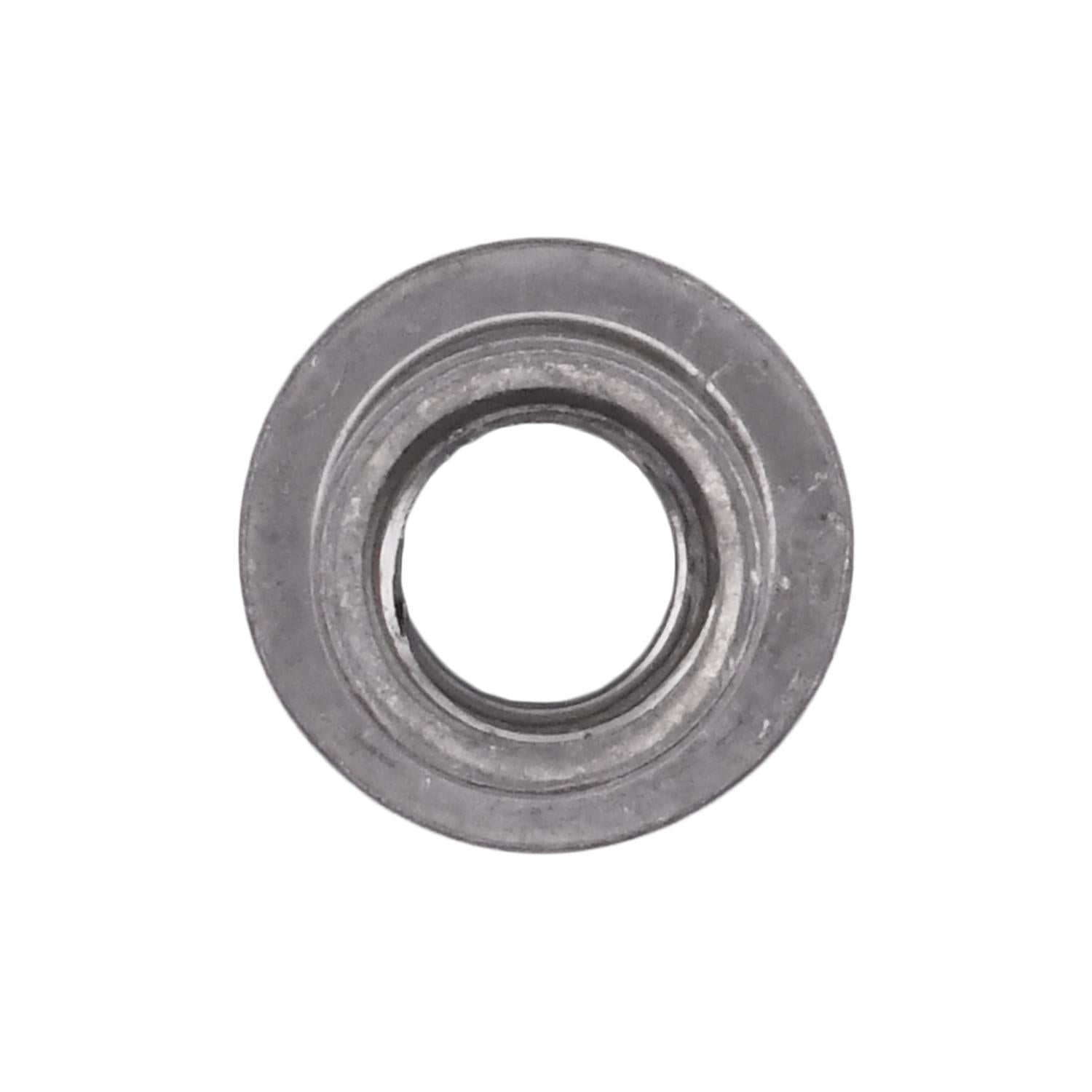

Auveco # 16182 Large Flange Thin Sheet Aluminum Nutsert 1/4"-20 Threads. Qty 25.

Price
$24.37
Taxes and shipping calculated at checkout
Out of stock

Product Information

Quantity: 25
Barrel Diameter: 0.328-0332 in.
Barrel Height: 0.325-0340 in.
Finish: None
Flange Diameter: 0.475 in. - 0.490 in.
Flange Thickness: 0.058 in.
Grip Range: 0.020 in. - 0.080 in.
Hole Size: 0.332 in. - 0.338 in.
Material: Aluminum
Screw Size: 1/4 in.-20
Used With: Pneumatic Tool
Made In: Taiwan

The Large Flange system provides captive threads in materials too thin to independently support threads, or where costly tapping operations are to be eliminated. The Large Flange fastener can be used as a rivet to join materials that will ultimately have a separate component attached.

To Set 8-32, 10-24 and 10-32 Large Flange Nutserts, use tool 11805 and conversion kits listed on page 163. Large Flange Nutserts, 1/4”-20, 5/16”-18 and 3/8”-16, require a pneumatic tool for installation. They cannot be set with 11805.

OEM Cross Reference

Car-Pak: J05652

SKU: 16182
