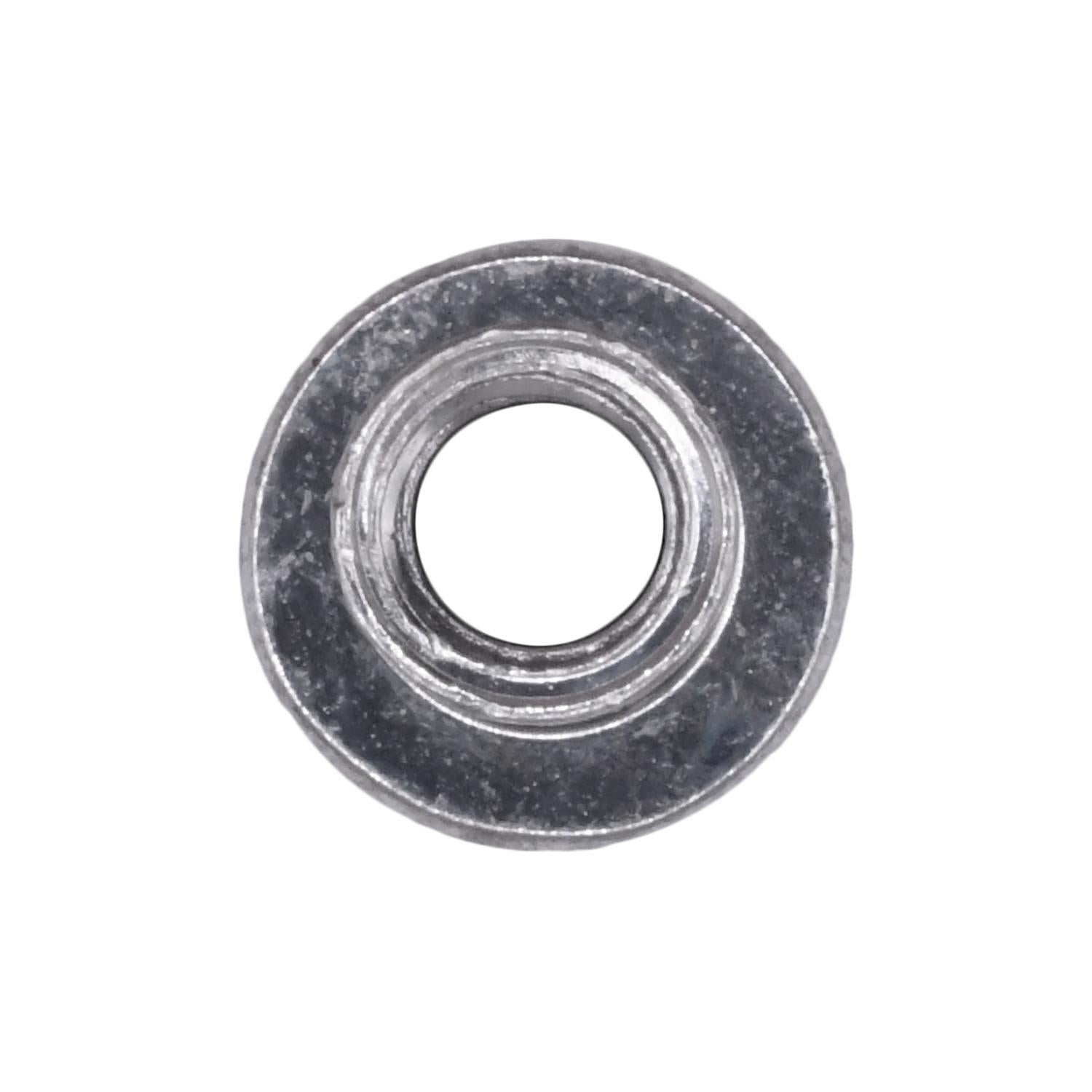

Auveco # 16189 Large Flange Thin Sheet Steel Nutsert 10-24 Threads. Qty 50.

Product Description
$43.20
Maximum quantity available reached.

Ships within 24 hours (M-F)

Product Information

Quantity: 50
Barrel Diameter: 0.246-0.250 in.
Barrel Height: 0.594-0.609 in.
Finish: Zinc
Flange Diameter: 0.406 in. -0.421 in.
Flange Thickness: 0.038 in.
Grip Range: 0.080 in.- 0.130 in.
Hole Size: 0.250 in. - 0.256 in.
Material: Steel
Screw Size: 10-24
Made In: Taiwan

The Large Flange system provides captive threads in materials too thin to independently support threads, or where costly tapping operations are to be eliminated. The Large Flange fastener can be used as a rivet to join materials that will ultimately have a separate component attached.

To Set 8-32, 10-24 and 10-32 Large Flange Nutserts, use tool 11805 and conversion kits listed on page 163. Large Flange Nutserts, 1/4”-20, 5/16”-18 and 3/8”-16, require a pneumatic tool for installation. They cannot be set with 11805.


Sku: 16189
Vendor: Auveco
