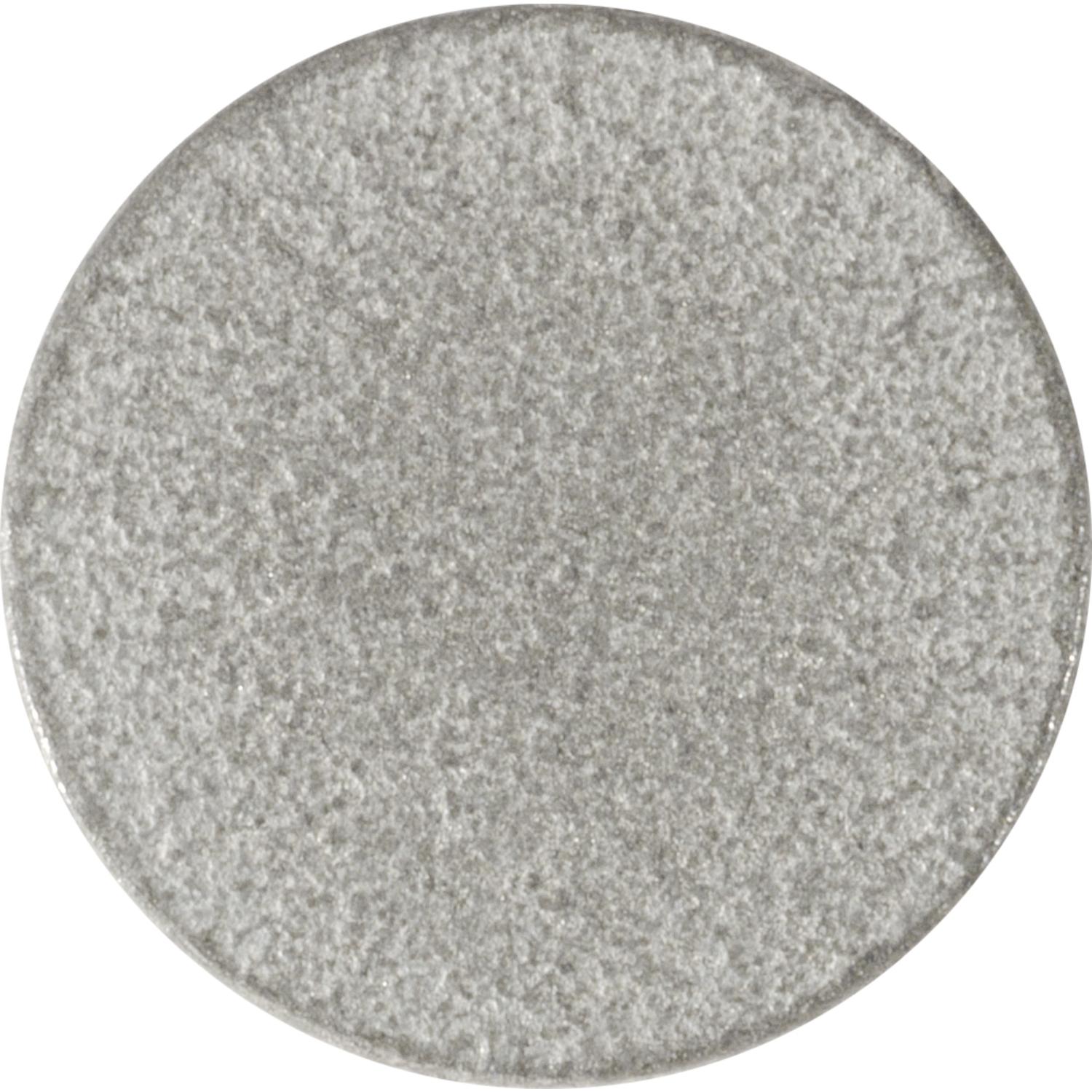

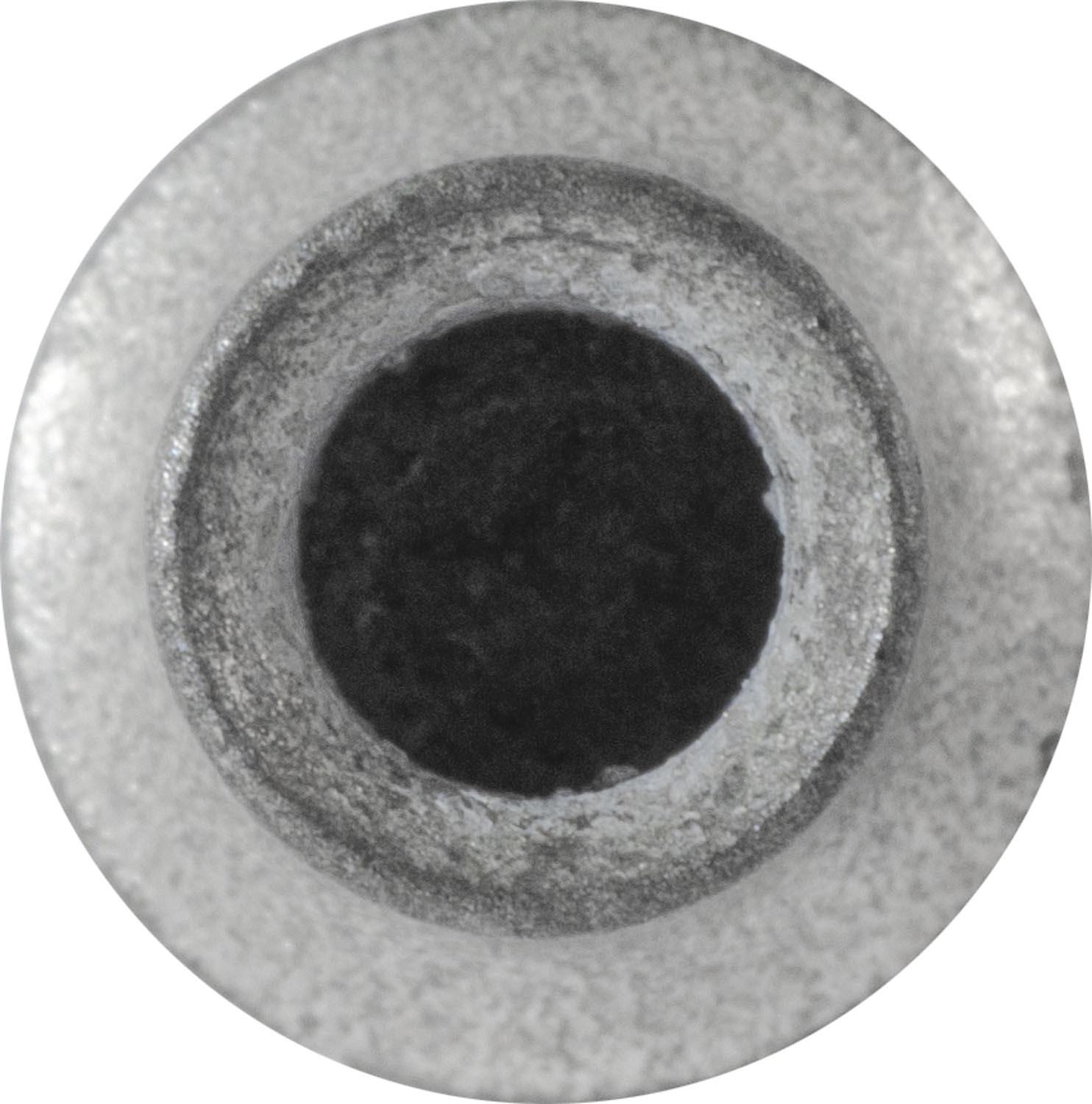

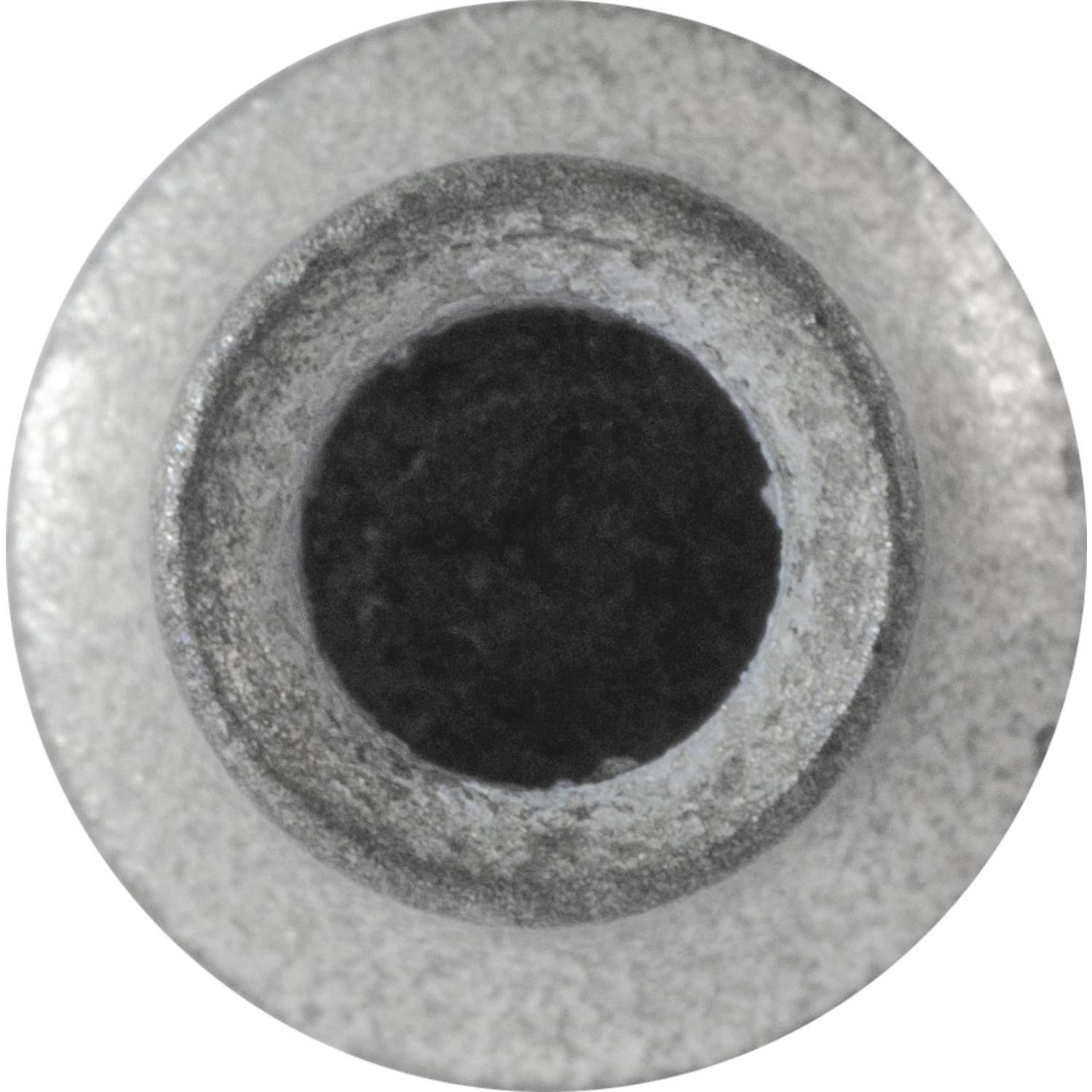

Auveco # 22877 Ford Self-Piercing Rivet W708714-S900. Qty 10.

Price: $54.40

Taxes and shipping calculated at checkout

In stock and ready for shipping

Quantity

Product Information

Quantity: 10
Code: AT
Diameter: 5.3mm
Finish: Almac
Head Diameter: 7.8mm
Head Style: Solid
Inner Diameter: 3.35mm
Location: Cab, Back Panel
Material: Steel
Overall Length: 6.05mm
Made In: USA

SELF-PIERCING RIVETS FOR ALUMINUM BODY FASTENING

These rivets are steel with an Almac® finish. Almac® coatings are combinations of aluminium and zinc which give substantially increased corrosion resistance compared with zinc. They are more ductile than zinc and are very advantageous when used in contact with aluminium.

Self-piercing rivets (SPR) join two or more pieces of material using a rivet without a pre-drilled hole.

Self-piercing rivets are a semi-tubular rivet driven at high force through the material layers to be joined, into a die which causes the tail of the rivet to flare out and form a joint.

The process requires no hole preparation and delivers high static strength similar to, or better than, spot welding. This process produces a fatigue resistant joint that is stronger than spot welding and less susceptible to corrosion.

The use of coated, lightweight and high-strength materials, such as galvanized or pre-painted steel and aluminum makes welding these materials difficult and often not possible. With these rivets, no prep is required.

OEM Cross Reference

Ford: W708714-S900
Lawson: 1632574

Fitment

Ford F-150: 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023
Ford F-150 Lightning: 2022, 2023
Ford F-250 Super Duty: 2017, 2018, 2019
Ford F-350 Super Duty: 2017, 2018, 2019
Ford F-450 Super Duty: 2017, 2018, 2019
Ford F-550 Super Duty: 2017, 2018, 2019
