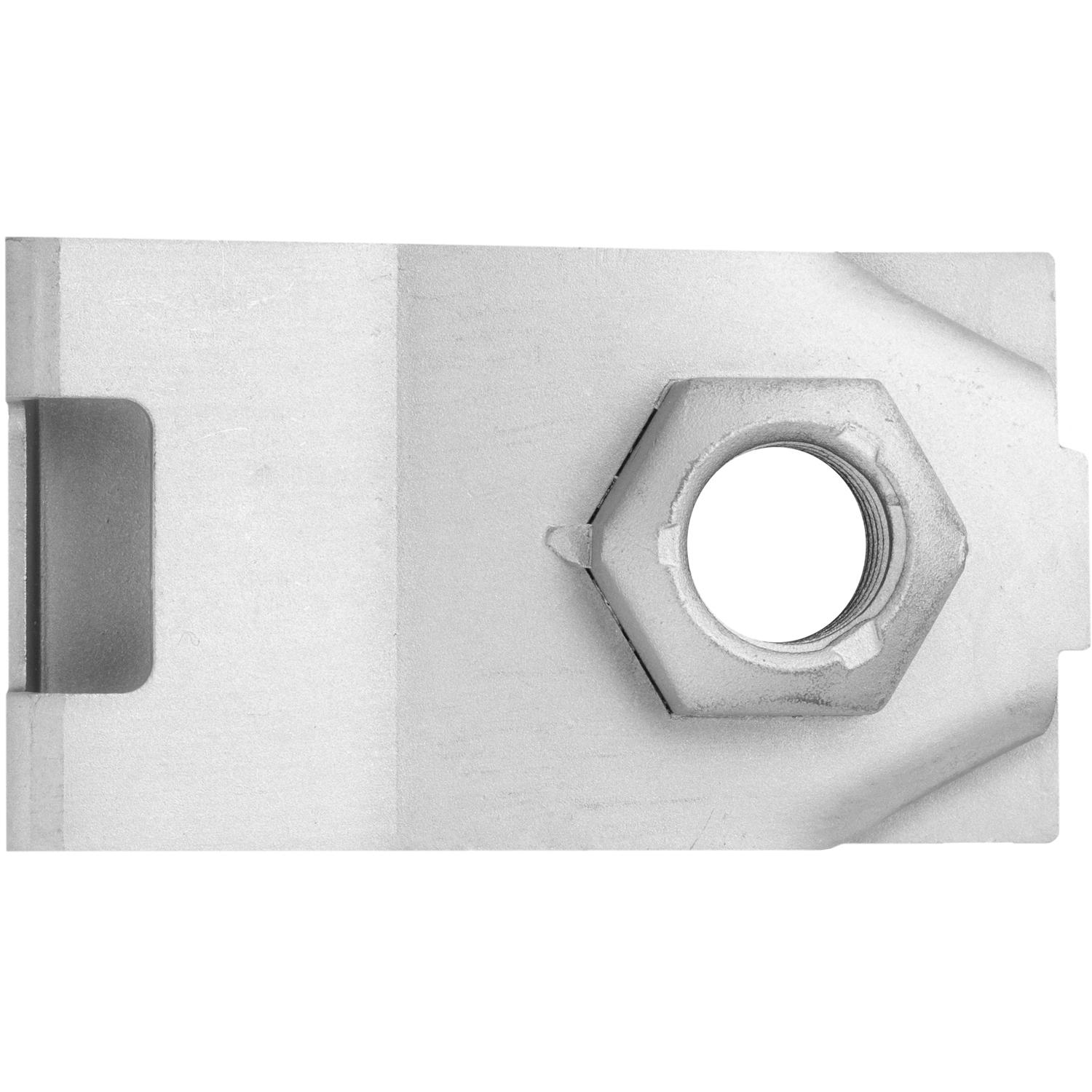

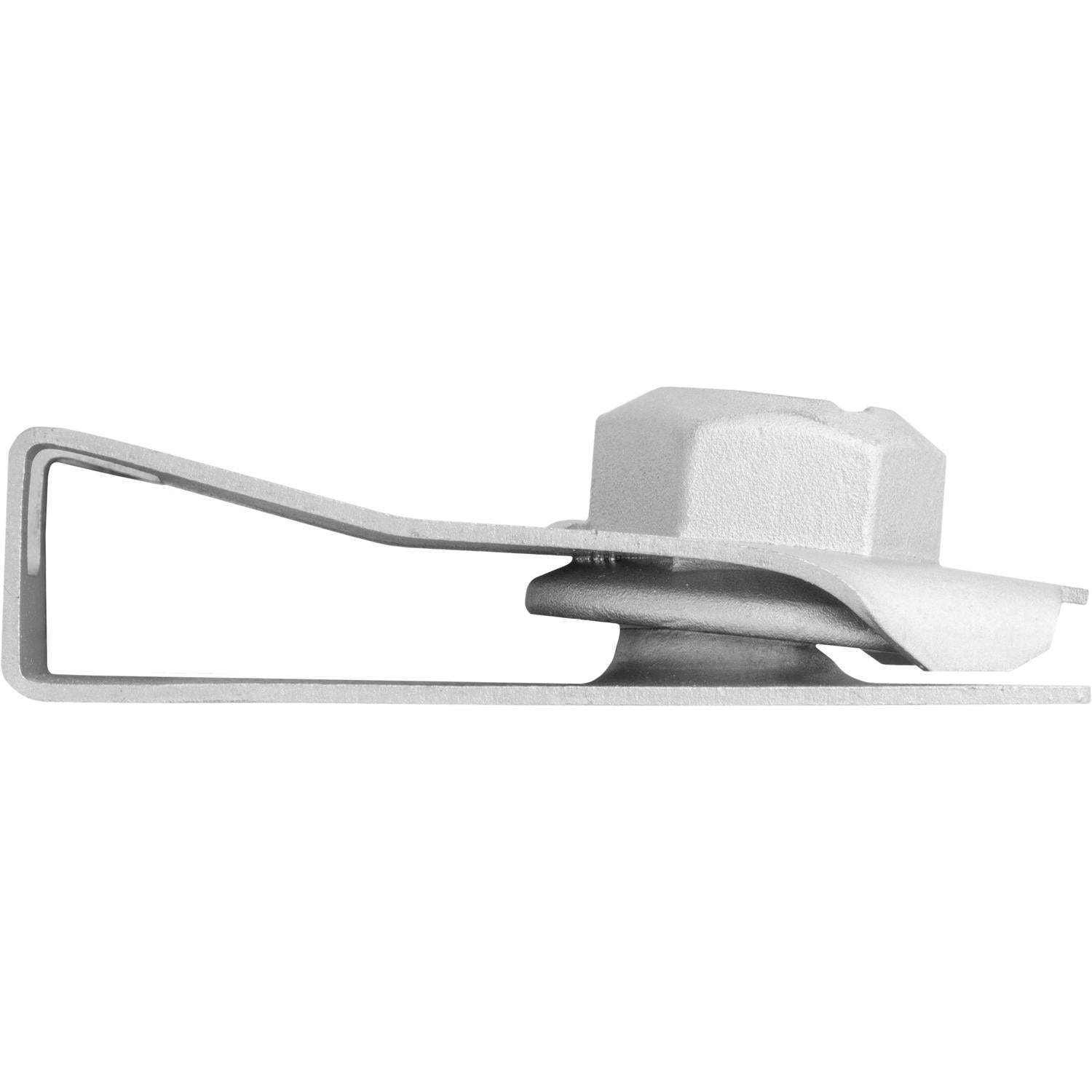

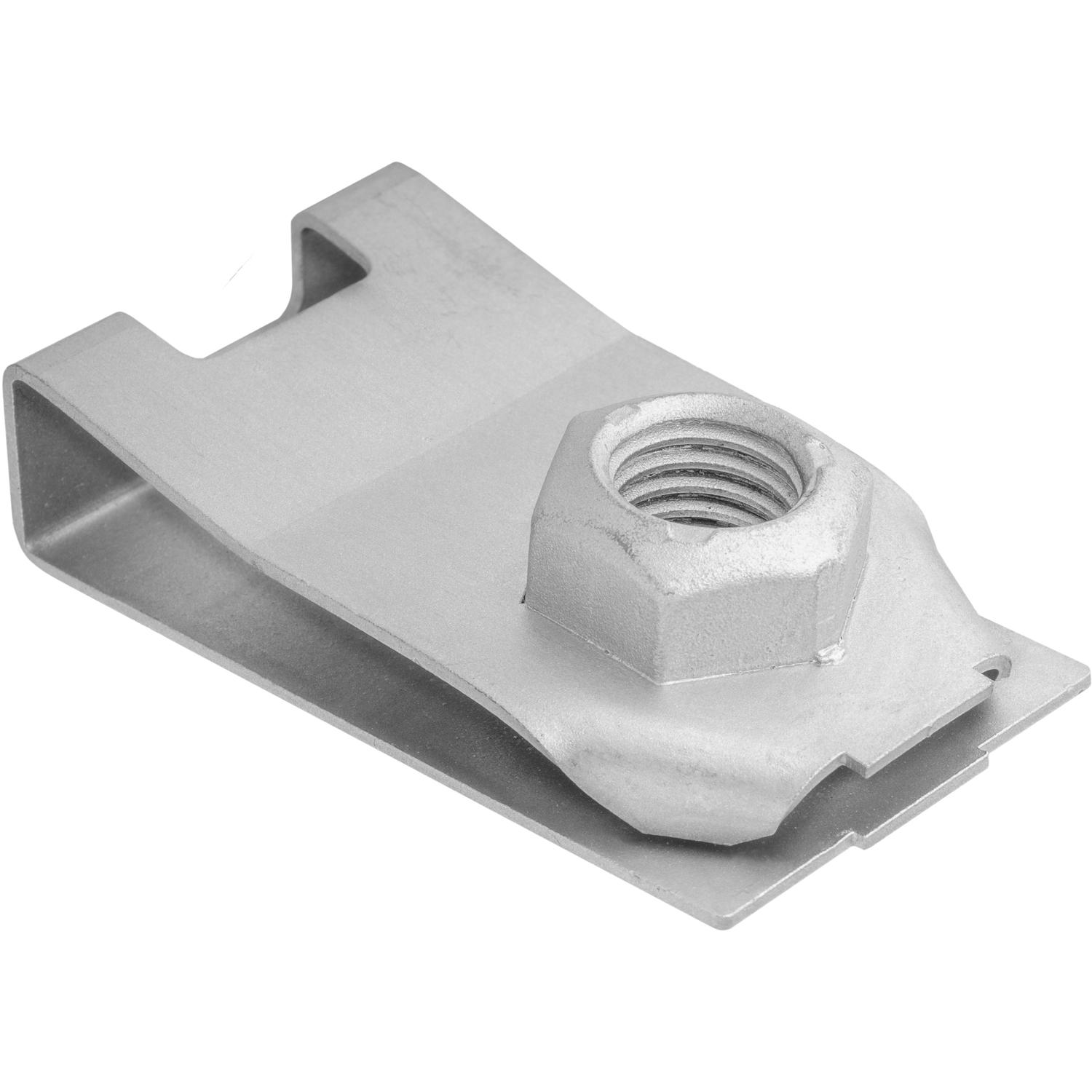

Auveco # 25041 Ford 1999-2016 New Style Bed Bolt U-Nuts. Qty 5.

Product Information

Quantity: 5
Description: Truck Bed Mounting U-Nut
Center Of Hole To Edge: 45mm
Finish: Zinc
Panel Range: 4mm
Screw Size: M14-2.0
Made In: China

Ford Bed Bolts and U-Nut

Problem solving Bed Bolt and U-Nuts for Ford F250SD, F350SD, F450SD, F550SD 2016 - 1999

THE PROBLEM

Original bolts & u-nuts are difficult to remove due to rust and the type of threading used at the factory.

Ford uses self-threading tri-lobular bolts called TAPTITE2000.

The bolts are driven down with a special tool into a u-nut attached to the frame that is not threaded.

These bolts require the use of a T-50P torx plus socket (do NOT use a T-47 or a standard T-50).

Once the bolts and clips rust/oxide they are nearly impossible to remove and often need to be cut off.

THE SOLUTION

Auveco’s replacement bolt and u-nut.

Standard threaded bolt and mating u-nut do not require special tools.

Bolts follow the head and shaft contours of the O.E. bolt which allow them to duplicate the original fit & function.

OEM Cross Reference

Ford: W708770-S436
Lawson: 1630771

Fitment

Ford F-250 Super Duty: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Ford F-350 Super Duty: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Ford F-450 Super Duty: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Ford F-550 Super Duty: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
