Auveco # 25135 Self-Piercing Rivet 3.3mm Dia. x 3.5mm Length. Qty 50

Product Description
$29.58
Maximum quantity available reached.

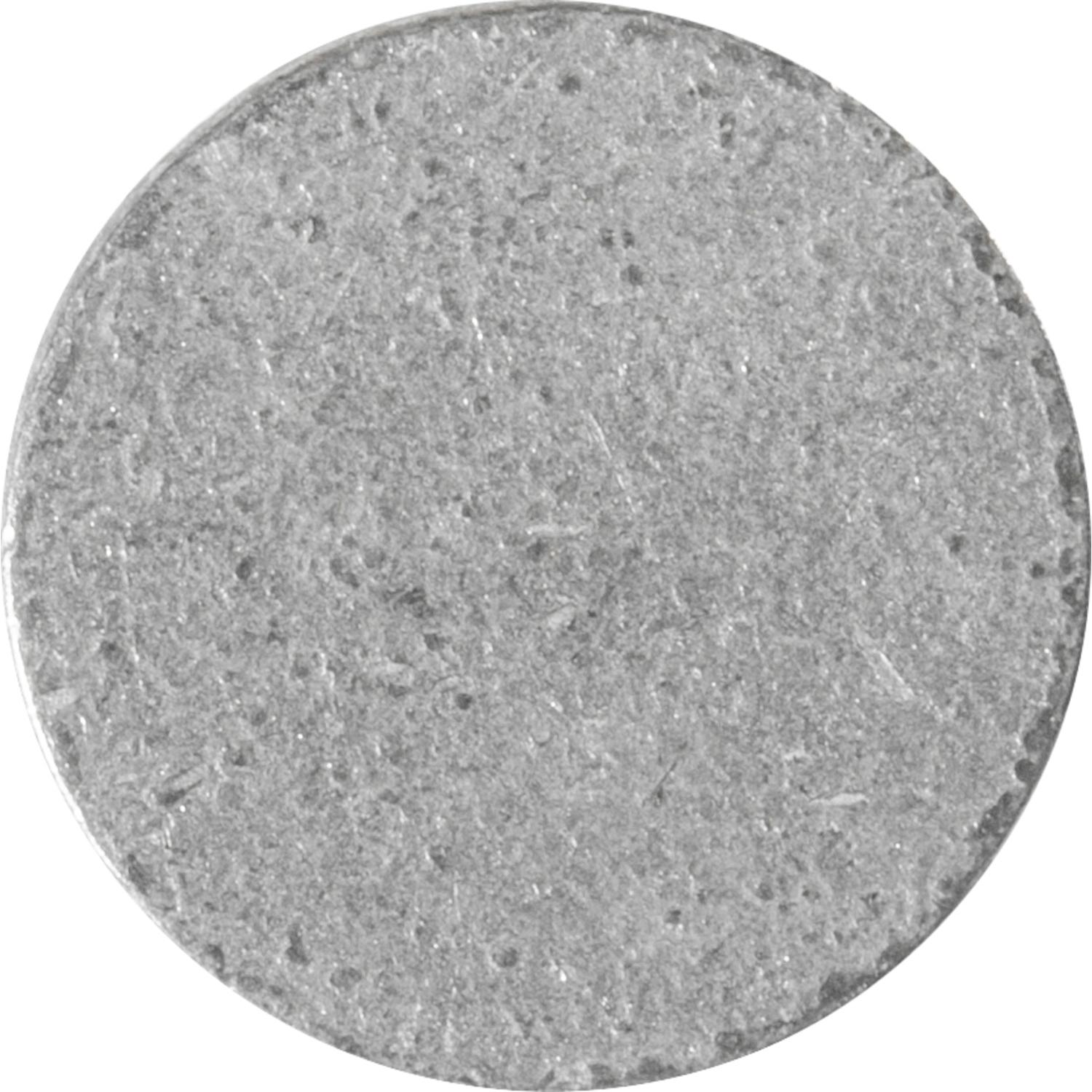

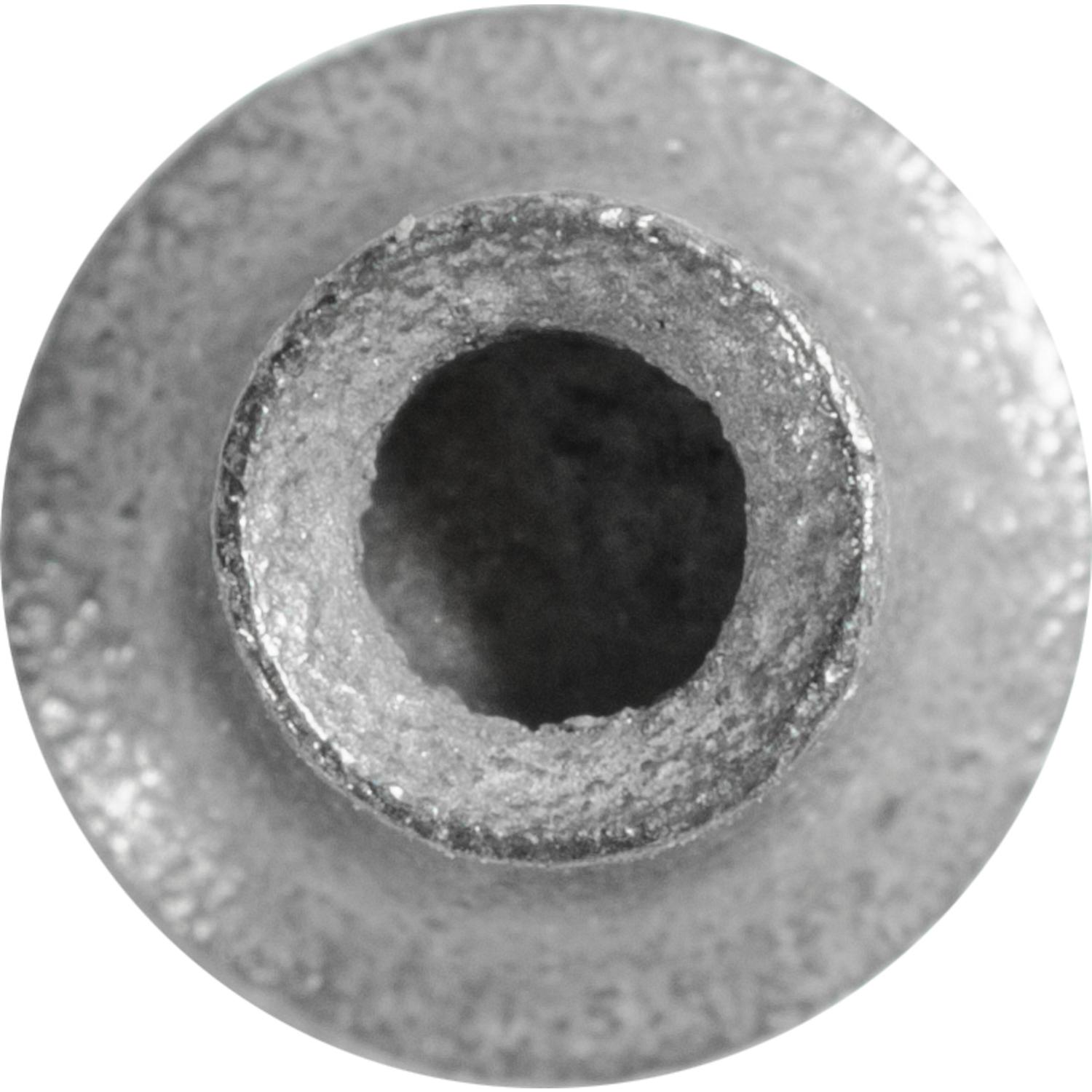

Auveco 25135 Self-Piercing Rivet 3.3mm Dia. x 3.5mm Length. Qty 50


Self-Piercing Rivets for Aluminum & Steel Body Fastening

  • Self-piercing rivets (SPR) join two or more pieces of material using a rivet without a pre-drilled hole.
  • Self-piercing rivets are a semi-tubular rivet driven at high force through the material layers to be joined, into a die which causes the tail of the rivet to flare out and form a joint.
  • The process requires no hole preparation and delivers high static strength similar to, or better than, spot welding.
  • This process produces a fatigue resistant joint that is stronger than spot welding and less susceptible to corrosion.
  • The use of coated, lightweight and high-strength materials, such as galvanized or pre-painted steel and aluminum
  • makes welding these materials difficult and often not possible.
  • For general purpose use. Refer to application specifications when choosing the proper SPR.
  • Material: Steel, H4 Hardness with patented ALAMC Coating
  • When using SPR rivets refer to the vehicle manufacturers (OEM) repair instructions. A test rivet should be set when the material or material thickness changes. These steps are the only way to obtain a reliable riveting process
  • Used by many OE manufacturers

Sku: 25135
Vendor: Auveco
