Auveco # 25042 Ford 1999-2016 New Style Bed Bolts M14-2.0 x 138mm. Qty 2.

Product Description
$11.49
Maximum quantity available reached.

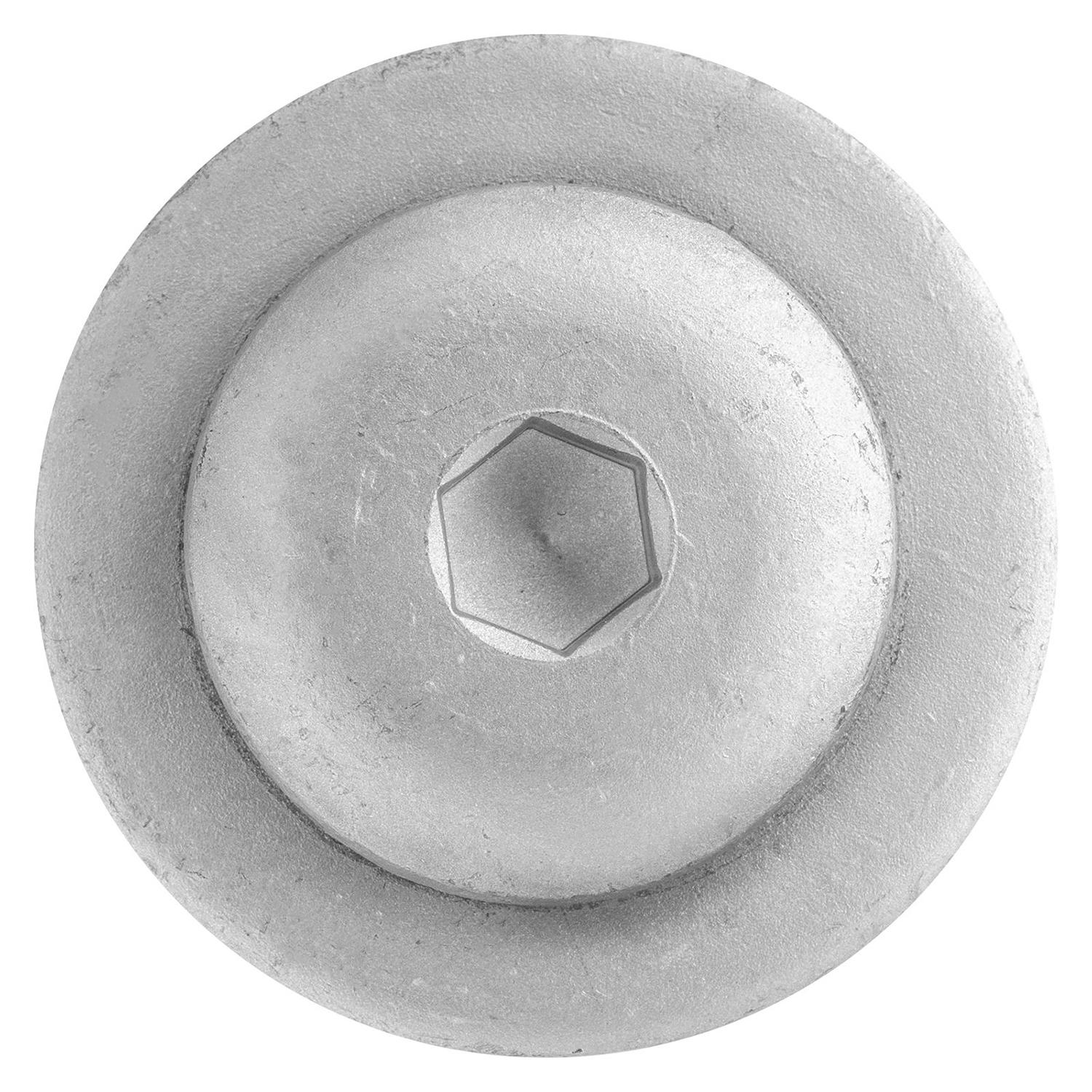

Auveco # 25042 Ford 1999-2016 New Style Bed Bolts. Qty 2.

  • Screw Size : M14-2.0 x 138mm
  • Washer Diameter : 40mm
  • Drive Size : 8mm Allen
  • Finish : Zinc
  • Shoulder Length : 23mm

Use With 25041 Auveco Bed Bolt U-Nut

Other Bolt Sizes:

25043 - M14-2.0 x 138mm with 19.5mm shoulder

25044 - M14-2.0 x 108mm with 23mm shoulder



Truck Bed Mounting Button Head Sems® Body Bolts with Zinc Finish

Ford Bed Bolts and U-Nut

Problem solving Bed Bolt and U-Nuts for Ford F250SD, F350SD, F450SD, F550SD 2016 - 1999

THE PROBLEM

Original bolts & u-nuts are difficult to remove due to rust and the type of threading used at the factory.

Ford uses self-threading tri-lobular bolts called TAPTITE2000.

The bolts are driven down with a special tool into a u-nut attached to the frame that is not threaded.

These bolts require the use of a T-50P torx plus socket (do NOT use a T-47 or a standard T-50).

Once the bolts and clips rust/oxide they are nearly impossible to remove and often need to be cut off.

THE SOLUTION

Auveco’s replacement bolt and u-nut.

Standard threaded bolt and mating u-nut do not require the need of special tools.

Bolts follow the head and shaft contours of the O.E. bolt which allow them to duplicate the original fit & function.


Sku: 25042
Vendor: Auveco
